CBTserie

INDUSTRIAL AIR CONDITIONERS  HEAVY DUTY FOR POWER PANELS AND ELECTRICAL ROOMS

capacity

COOLLING CAPACITY

1kW >> 4kW

applications_icons-temperature_gen

RANGE

-30°C / +80°C

SPECS gas

REFRIGERANT

R134a / R227ea

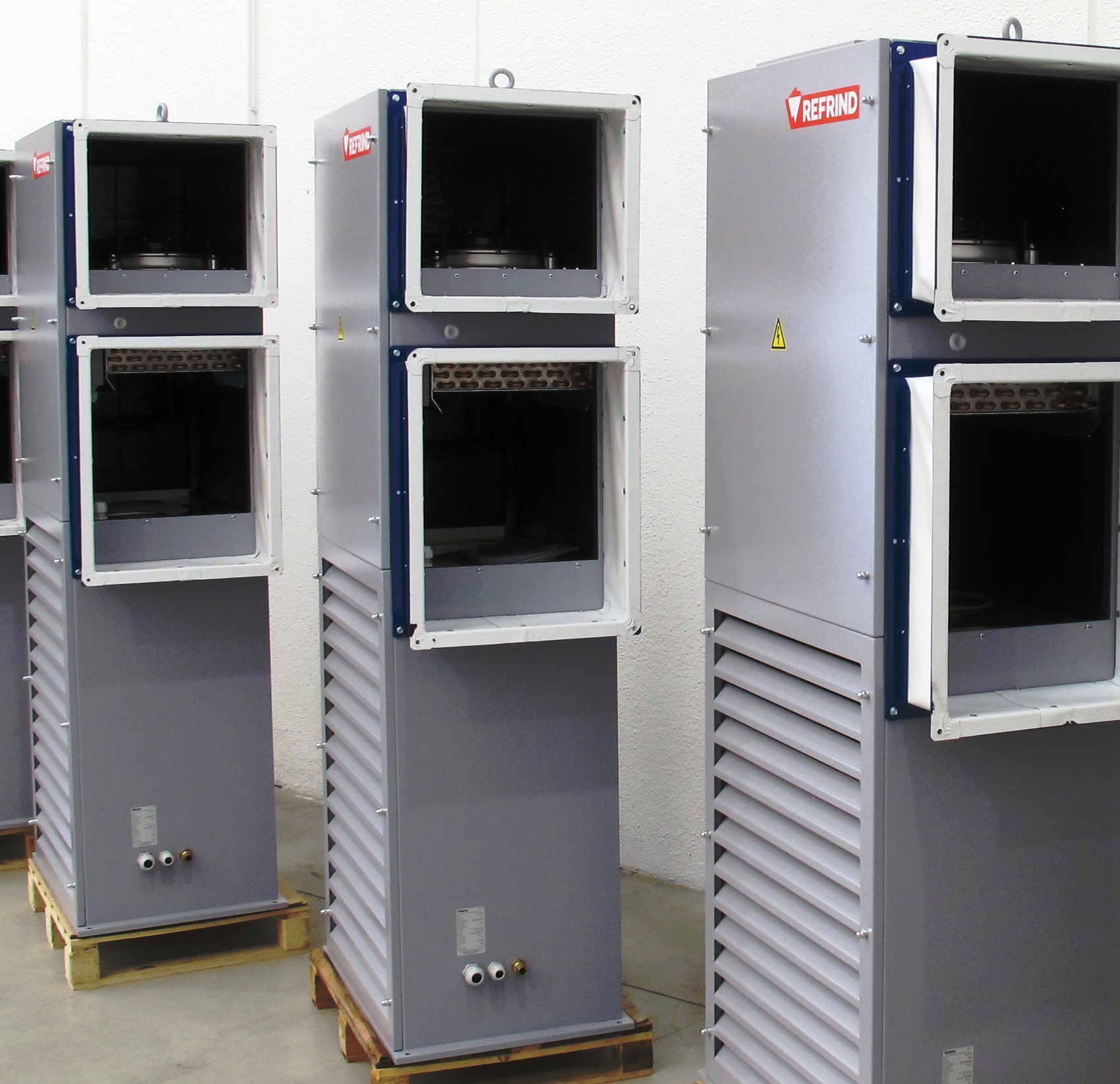

CBT CONDIZIONATORE

INDUSTRY

iron and steel

cement

mining

APPLICATION

power panels

electrical rooms

STANDARD FEATURES

The CBT air conditioners are designed for the thermoregulation of automation panels and electrical rooms in general.

Are suitable for installation in the most harsh environment of the industry as moving cranes, bulky material handling lines and in all application where present high dusty or corrosive atmosphere, high vibration or extreme temperature.

Thanks to Refrind’s experience, CBT air conditioners result in eliable, sturdy, easy and reduced in maintenance products, therefore suitable for operation in particularly harsh conditions.

packaged frame with compact construction, suitable for ground installation and duct connection


housing made in thick steel plate, RAL5010 powder painting with textured finishing


easy service access thanks to frontal removable panels


lifting eyebolts for easy handling


suitable for outdoor installation


finned heat exchangers, composed of high thickness copper tubes and aluminium fins, with wide fin spacing to avoid the accumulation of dirt

air condensation with forced ventilation


HFC R134a refrigerant fluid with low environmental impact


SCROLL® compressor with anti-vibrating dumpers


refrigerant circuit made of fine alloys brazed copper tubes, equipped with lamination device, dryer filter, high and low pressure switch


piping specific arrangement to allow operation in high vibrating and accelerating application

on-board factory wired power panel with easy access to internal parts. It comprehend all devices necessary to the autonomous and safe operation


electronic controller inside AC unit for the management of cooling and heating (optional) function


standard signals: general alarm, high temperature alarm, remote ON/OFF enable

condenser axial fans, with condensation control


high head recirculating fans:

  • mod. CBT 602 – 103: axial fans
  • mod. CBT 153 – 203 : centrifugal fans

high flexibility for air handling thanks to the multiple accessories and duct connection
