RFWserie 351-501

INDUSTRIAL REFRIGERATORS DESKTOP MICRO-CHILLER

PDF
capacity

COOLING CAPACITY

0.36kW >> 0.5kW

applications_icons-temperature_gen

RANGE

+5°C / +30°C

precisione

PRECISION

+/-2 K ÷ +/-0.1 K

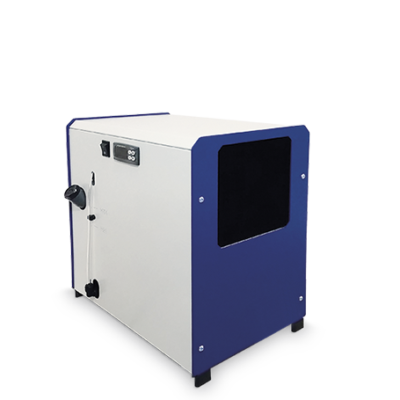

RFW 351-501 REFRIGERATORE INDUSTRIALE

INDUSTRY

elettronica e telecomunicazioni

laboratorio

medicina e estetica

occhialeria

APPLICATION

macchine utensili

test e misurazione

computer ad alta precisione

STANDARD FEATURES

The RFW series chillers stand out by their ultra-compact dimension and versatility use.

These chillers are complete of all devices necessary to the autonomous operation and comprehend inertial storage tank an immersion type pump. Developed to ensure maximum functionality and ease of use, offer several option and accessories which allow their use in most applications of industry and not only.

The high accuracy version gives increased stability in order to fulfill the most demanding applications.

The consolidated Refrind’s experience allowed to evolve in a reliable and accurate product while maintaining excellent value of money.

compact construction for desk installation


housing made in steel, RAL5010/7035 painting with textured finish


easy service access through removable panels


designed for indoor installation

air condensation with forced ventilation


HFC refrigerant fluid with low environmental impact


hermetic compressor mounted on anti-vibration damper


condenser coils made in steel with varnishing


immersed cooling coil made in AISI316 smooth tube

temperature control with +/-2 K stability


front side user’s console with main switch and controller’s display


power cord with 2,5m length and Schuko plug

suitable for the circulation of normal water, deionized and glycol mixture


circuit components made of plastic and stainless steel


hydraulic connections on lateral side, quick connection type


immersed type circulation pump without mechanical sealing, made of plastic


external visual level indicator and drainage


filling cap available from external side
