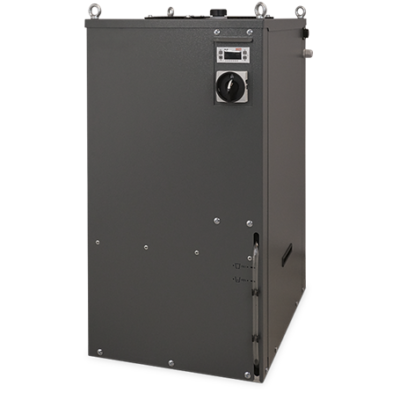

RFW 352-253 serie

INDUSTRIAL REFRIGERATORS COMPACT VERTICAL

PDF
capacity

CAPACITY

3.5kW >> 25.0kW

applications_icons-temperature_gen

RANGE

-10°C / +30°C

precisione

PRECISION

+/-2 K ÷ +/-0.1 K

RFW REFRIGERATORI

INDUSTRY

automotive

manifacturing

plastic and rubber

laboratory and analysis

APPLICATION

machine tools

laser sources

hydraulic and oleodynamic

STANDARD FEATURES

The RFW series chillers stand out by their compact dimension, versatility use and vertical construction. Designed to ensure maximum functionality and ease of use, the RFW offers great flexibility with availability of several optional and accessories which allow them to implement most of the industrial application and not only.

Choosing for the high accuracy version, are equipped with a base rich equipment, comprehensive of double level sensor, pressure switches, multiple temperature thresholds which allow to reach high level of reliability and protection for the chiller itself and for the user’s application.

Thanks to Refrind’s experience, the RFW series evolved in a reliable and accurate product while maintaining excellent value of money.

struttura monoblocco con sviluppo verticale compatto


carpenteria in acciaio verniciato a polveri RAL7024 bucciato


facile accesso alle parti interne attraverso i pannelli laterali e superiori
anelli di sollevamento per una facile movimentazione


ventilatori assiali dinamicamente bilanciati


idonea per installazione al coperto


basamento idoneo al sollevamento con carrello

air condensation with top side discharge


HFC refrigerant fluid with low environmental impact


compressor mounted on anti-vibration feet:

  • mod. ≤602 hermetic piston
  • mod. ≥752 hermetic scroll

condenser coils made with copper tubes and aluminium fins


evaporator made in stainless steel:

  • mod. ≤602 immersed coil
  • mod. ≥752 brazed plate

electronic control of temperature with accuracy +/-2K (high accuracy on request)


on-board power panel with easy access to internal electrical parts


front side user’s console with main switch and controller’s display


power supply and signals connections available on terminals inside power panel


standard signals: general alarm, H/L temperature alarm, remote ON/OFF enable

suitable for the circulation of water and water/glycol mixture


panel mount gauge for working pressure monitoring


circuit components made in NON-FERROUS materials


connections positioned on back side, female GAS threaded type, made in brass


recirculating pumps:

  • mod. ≤602 Vane type made in brass with adjustable bypass
  • mod. ≥752 Centrifugal in stainless steel
  • mod. ≥ 193: Centrifugal type multistage

external visual level indicator


filling cap available on external side


fixed bypass for pump protection
