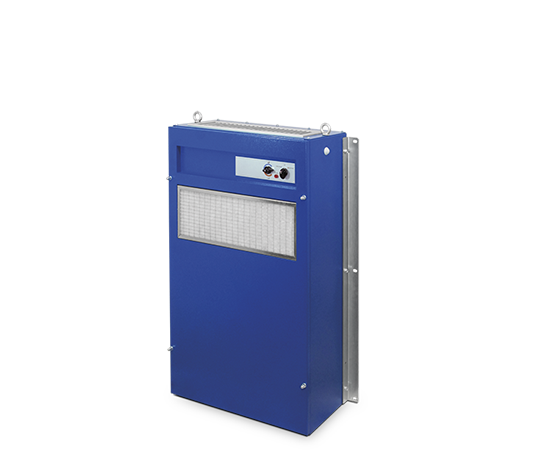

CBG series

Industrial air conditioners heavy duty for operator’s cabin and control room

STANDARD FEATURES

The CBG air conditioners are developed in a compactconstruction and designed for the thermoregulation of operator cabins, electrical rooms and containers.

Are suitable for installation on mobile stations, cranes and maneuvering stages, placed in environments with high temperature and dust concentration or aggressive atmospheres.

Thanks to Refrind’s experience, CBG air conditioners result in reliable, sturdy, easy and reduced in maintenance products, therefore suitable for operation in particularly harsh conditions.

COOLING CAPACITY

3kW >> 10kW

RANGE

-20°C / +80°C

REFRIGERANT

R407c/R513ba/R515b

Industry

mining
off shore and marine
iron and steel

Application

operator’s cabin
electrical rooms
shelters

packaged compact frame with vertical construction, suitable for wall mount

housing made in high thick steel, RAL5010 powder painted with textured finishing

easy access for service and maintenance through front removable panels
lifting eyebolts for easy handling

finned heat exchangers, composed of high thickness copper tubes and aluminium fins, with wide fin spacing to avoid the dirt accumulation

air condensation with forced ventilation

HFC refrigerant fluid with low environmental impact:

mod. CBG 18: R407C
mod. CBG 20 – 100: R134a

compressor with anti-vibrating dampers:

mod. CBG 18 – 62: hermetic compressor
mod. CBG 100: SCROLL® compressor

refrigerant circuit made of fine alloys brazed copper tubes, equipped with expansion device, dryer filter, high and low pressure switch. Tubes arrangement allows the air conditioners to operate on high vibrating cranes

on-board power panel with easy access to internal parts, complete of all devices needed to a safe and autonomous operation

electro-mechanical consolle for management of cooling and heating functions, summer and winter mode selection; the consolle is positioned on recirculation airside

standard signals: general alarm, high temperature alarm

high pressure recirculation centrifugal fans with double speed (except for CBG 18-20-100)

condenser axial fans, with condensation control

synthetic media washable air filter, on recirculation air side possibility of air distribution through duct (starting from CBG 30)

CBG series

COOLING CAPACITY

RANGE

REFRIGERANT
