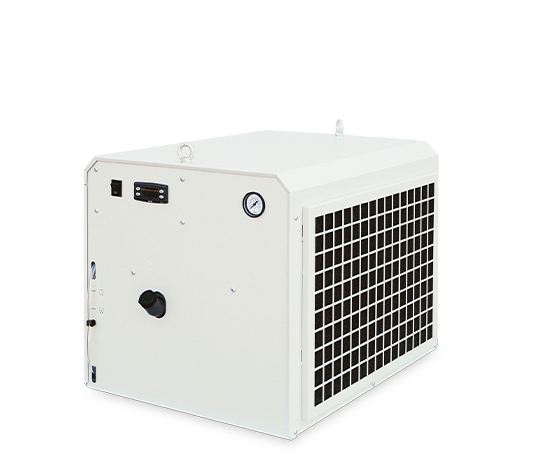

package chiller with horizontal compact construction
housing made in steel, RAL7035B painting with textured finish
easy service access through lateral and top side removable panels
lifting eyebolts for and easy handling
axial type fan dynamically balanced
designed for indoor installation
air condensation with back side discharge
HFC refrigerant fluid with low environmental impact
compressor mounted on anti-vibration damper
- single-phases versions with hermetic rotary type
- three-phases versions with hermetic piston type
condenser coils made with copper tubes and aluminium fins
evaporator made in stainless steel, immersed tube type
figh refrigerant pressure switch
electronic control of temperature with accuracy +/-2K
on-board power panel with easy access to internal electrical parts
front side panel equipped with main switch and controller
cabled power cord with free-end, 2,5m length
signals connections available on internal terminals
standard signals: general alarm contact (high press., H/L temp.), remote ON/OFF
suitable for the circulation of water and water/glycol mixture
panel mount pressure gauge (pulse insensitive)
circuit components made in NON-FERROUS materials
connections positioned on back side, female GAS threaded
type, made in brass
rotary vane pump, brass made, with adjustable bypass
visual level indicator
filling cap accessible from the outside
fixed by-pass between delivery and return
